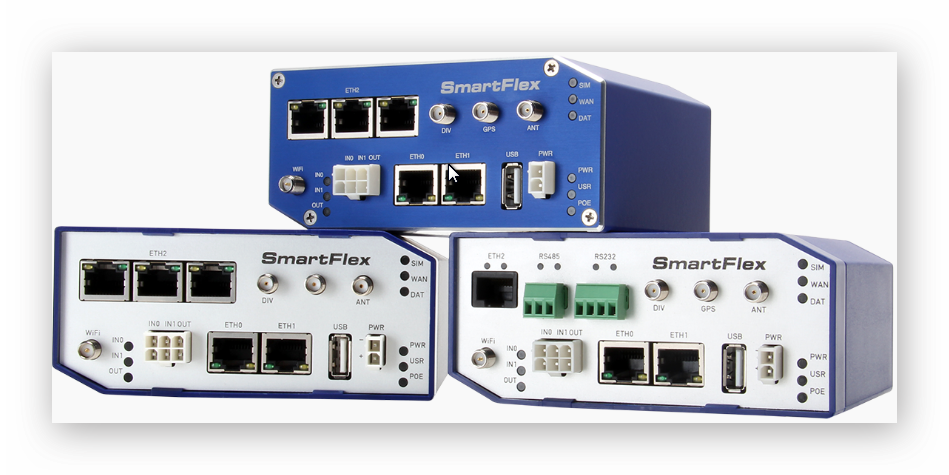

SMARTFLEX CELLULAR ROUTERS



With hundreds of possible configurations, flexible SmartFlex cellular routers can be configured to suit any application.

  • Aggregate data from multiple devices: Serial, Ethernet, Wi-Fi, I/O.
  • Standard ports include (2) Ethernet, (1) I/0 port, (1) USB port, (2) SIM Slots and (1) microSD car holder.
  • Optional ports include additional Ethernet ports and RS-232/422/485 serial ports with isolation.
  • The router may have up to (5) Ethernet ports (2 Router, 3 Ethernet Switch).
  • Optional, industrial grade Wi-Fi is available.
  • GPS and GLONASS support.
  • Plastic Or Metal Enclosure.
  • PoE Models available.
  • Install our User Modules for specific applications or create your own.
  • Switch between cellular carriers at a moment’s notice.
  • Connect Modbus equipment.
Please CONTACT US for a QUOTE


AT&T CAT1 Now Available!

Verizon CAT1 Coming Soon!

EMEA/LATAM CAT4
Now Available!

DETAILS


INTELLIGENT



Download our User Modules for specialized functions. Use the router as an AT Modem Emulator, a Modbus RTU/TCP gateway and more.

Create your own Linux scripts for additional special functions.

Create multiple software configurations for each router, and switch between them at any time.

Upgrade router configuration and firmware from your central server, allowing for simultaneous mass reconfiguration of every router on the network.

Use a secure Web interface to configure and manage the SmartFlexTM from remote locations.

Low power consumption mode for solar and battery power applications.


POWERFUL

Full support for LTE

256 MB flash memory, 512 MB RAM and 128kB M-RAM

Upload speeds of up to 50 Mbit/s and download speeds of up to 100 Mbit/s -- easily handles video applications.



SAFE AND SECURE


Real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP.

Support for DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions.



RUGGED AND RELIABLE


Dual SIM card ports for automatic failover or multiple cellular carrier support.

Designed and manufactured for use in tough environmental conditions.

Extended operational temperature range from -40 °C to 75 °C. 10-60 VDC operation with transient and reverse polarity voltage protection.

Industrial certifications.

MODELS

Model No. Description Price
SR30500010 NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS $549.00 SR30500020 NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Metal enclosure
SR30500110 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS $799.00 SR30500120 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Metal enclosure
SR30500410 NAM: LTE, GSM/GPRS/EDGE, 3xETH, USB, 2xI/O, SD Holder, RS232, RS485, 2xSIM
SR30500420 NAM: LTE, GSM/GPRS/EDGE, 3xETH, USB, 2xI/O, SD Holder, RS232, RS485, 2xSIM, GPS, Metal enclosure
SR30508010 NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, PoE PSE
SR30508110 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, PoE PSE
SR30508120  NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, PoE PSE, Metal enclosure
SR30510010 NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi
SR30510020  NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi, Metal enclosure
SR30510110 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi
SR30510120 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi, Metal enclosure
SR30510410  NAM: LTE, GSM/GPRS/EDGE, 3xETH, USB, 2xI/O, SD Holder, RS232, RS485, 2xSIM, GPS, Wi-Fi
SR30510420 NAM: LTE, GSM/GPRS/EDGE, 3xETH, USB, 2xI/O, SD Holder, RS232, RS485, 2xSIM, GPS, Wi-Fi, Metal enclosure
SR30518010 NAM: LTE, GSM/GPRS/EDGE, 2xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi, PoE PSE
SR30518110  NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi, PoE PSE
SR30518120 NAM: LTE, GSM/GPRS/EDGE, 5xETH, USB, 2xI/O, SD Holder, 2xSIM, GPS, Wi-Fi, PoE PSE, Metal enclosure

  Please CONTACT US for a QUOTE

SPECIFICATIONS



  • NEW Twin Module Design For Reliable Connectivity – LTE – LTE450
  • Built on Cortex A8 CPU with 256 MB flash memory and 512 MB RAM.
  • 2x independent Ethernet 100 Mbps
  • 1x USB 2.0 Host
  • Four SIM card holders on the rear side of the router (given DIN holder on back side) – 4 Mini SIMs (2FF)
  • On board MicroSD card holder – SDHC, SDXC – SDHC – up to 32 GB – SDXC – from 32 GB to 64 GB
  • 1x I/O – 2x opto coupled Binary Input, 1x opto coupled Binary Output
  • Input voltage range is from 10 Vdc to 60 Vdc
  • Power section includes protection against over voltage, because of E8 certification
  • Low power ready
  • Extended operational temperature range from -40°C to 75°C (-20°C to 60°C LTE450)
  • Optional On board Wi-Fi module. 802.11 b/g/n with AP/STA
  • Firmware v2 compatible, Python support (without SDK)
  • Detailed event history log, etc.
  • asy firmware update
  • Compact dimensions, all necessary ports, LED, antenna connectors in the front of the router and option to be attached to a DIN bar – SIM, WAN, DAT, IN0, IN1, OUT, PWR, USR, PoE, 2xETH
  • Dimension / Weight: SL version – 55x97x125mm / 400g
  • FTP server, option to create user applications
  • Wi-Fi 802.11 a/b/g/n – *optional (AP/STA) 10 clients supported (-40 to 75 °C)
  • GPS

ACCESSORIES


Model No. Product Name and Description Price
AW-A2458G  Antenna WiFi 2.4 & 5.8 GHz
RPS-V3-MO2-M Power Supply, SFle/SMot/SSwo, 12V/1A
RPS-V3-PSE-US Power Supply, SFle/SMot/SSwo, 48V/1.35A, US
BB-PWRCORD-US Power Supply, SFle/SMot/SSwo, PSE Power Cord, US
BB-PWRCORD-EU Power Supply, SFle/SMot/SSwo, PSE Power Cord, European
SBD40 DIN Clip - metal v2 and SmartFlex/Motion/Swarm
CPD3 DIN Clip - plastic SmartFlex/Motion/Swarm
KN-V3-MO2-3 Power Supply cable 2-wire, MO 2pins, 3m, v3 routers
KIO-V3-MO6-3 IO cable 6-wire, 3m, v3 routers

Please CONTACT US for a QUOTE



APPLICATIONS AND RELATED INFORMATION

SMART FLEX™ … MORE POWER, MORE FEATURES, MORE IDEAS


The SmartFlex™ cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can be used to provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical, and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbit/s anddownload speeds of up to 100 Mbps, the SmartFlex™ provides ample bandwidth, even for applications that require video.

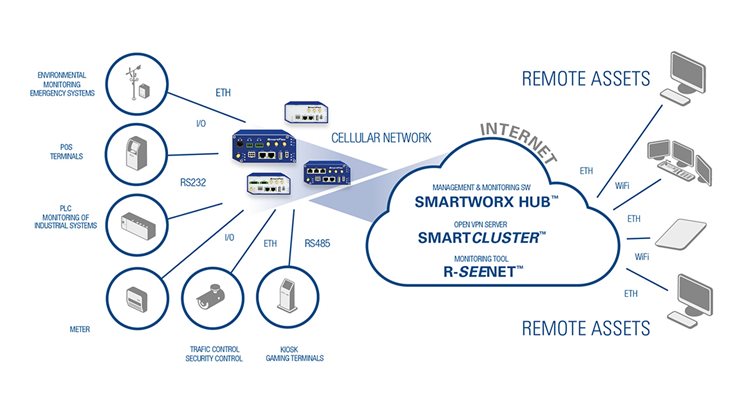

SmartFlex Schematic diagram The SmartFlex™ is designed and manufactured for use in tough environmental conditions. Specifications include wide operating temperature ranges from -40 to 75 °C (-20 to 60 °C LTE450 module). It accepts input voltage ranges from 10 V DC to 60 V DC and is equipped with sleep mode for reducing electrical consumption.

The SmartFlex™ places intelligence out at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage the SmartFlexTM from remote locations. The router can also upgrade its configuration and firmware from the operator’s central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and they can create multiple configurations for the same router. Users may switch from one configuration to another at any time.

The flexible SmartFlex™ can be configured to suit any application. The standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses. The standard configuration also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O) , 1 binary output (I/O) and onboardGPS. An optional built-in WiFi module is also available, with industrial grade operating temperature ranges from -40 to 75 °C (-20 to 60 °C LTE450 module). Further optional boards available:3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or ETH – RS232 – RS485 (isolation strenght up to 2.5kV) or RS232 – RS485(isolation strenght up to 2.5kV) or RS232.

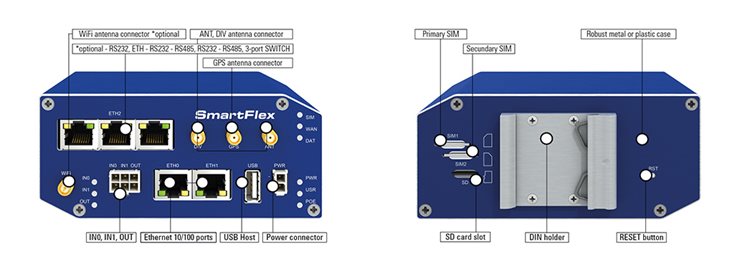

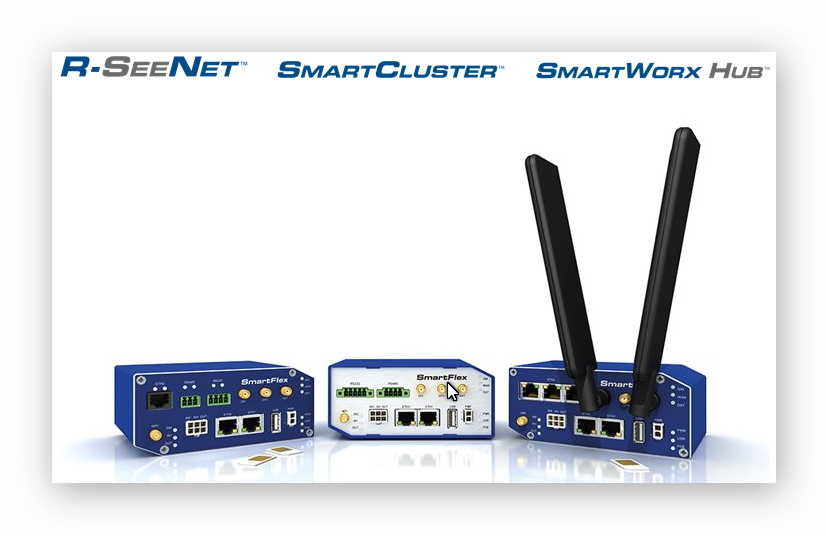

The SmartFlex™ supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet. SmartFlex front - rear panels


INTELLIGENT MANAGEMENT SOFTWARE


SmartFlex™ is easy to install using SmartWorx HUB™, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster™, makes it easy to configure multiple routers via the same VPN tunnel.
