 When you are looking for maximum compatibility in a small format product, choose the industry standard, a SummaSketch III digitizer. With over 2000 lines per inch of resolution, support for DOS, Windows 3.1, Windows 95, 98, ME, NT, 2000 and XP there is a SummaGraphics product designed for you.

blueball.gif (772 bytes)Product Features Ergonomic tablet in 12 inch by 12 inch size
blueball.gif (772 bytes)Choice of transducers - Pen Stylus, 4 Button or 16 Button Cursor.
blueball.gif (772 bytes)Windows drivers 2000, XP, Vista and Win 7

Product Summary:
SummaSketch III is the award-winning, best-selling digitizing tablet because it comes with everything you need for fast and accurate digitizing, tracing, drawing, illustrating, cursor steering and menu picking with your CAD and graphics programs. SummaSketch III is compatible with over 400 software programs -- the most software compatibility around.

SummaSketch III and SummaSketch III Professional feature an ergonomic, wedge-shape design and tilt adjustment that make working comfortable and non-fatiguing. A recessed template or artwork area and transparent overlay hold your work securely. A choice of pen stylus, 4-button or 16-button cursor allow you to select the best configuration for your needs. SummaSketch tablets provide high accuracy, and proximity sensing of up to one-half inch means that you can trace images even through thick material. Standard equipment includes the tablet, your choice of cursor or pen, drivers and utilities, USB and serial interface, cables and more. With SummaSketch III from GTCOCalComp you're ready to go.



    Summasketch III - 12" X 12"
Summasketch III with 4B Cursor, RS232 and USB Interface Summasketch III with 16B Cursor, RS232 and USB Interface  Summasketch III with Pen Stylus. Limited Availability
 SOLD OUT - NO LONGER AVAILABLE

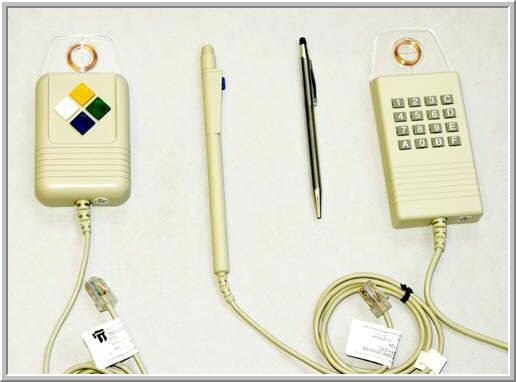

Summasketch III 4 Button Cursor, Stylus and 16 Button Cursor





    Summasketch III Accessories - Cursors and Stylus
Pen Stylus for SSIII 4 Button Cursor for SSIII 16 Button Cursor for SSIII
 SOLD OUT
NO LONGER AVAILABLE

SOLD OUT
NO LONGER AVAILABLE







Current Models Return to top of page

Model Description
SummaSketch III 12 x 12 in digitizer  - Limited Availability at April 2013
SummaSketch III Professional 12 x 18 in digitizer No LONGER AVAILABLE SEE THE DRAWINGBOARD VI 12x18

What's In The Box
:
SummaSketchTablet
Cursor TabletWorks driver software on CD-ROM

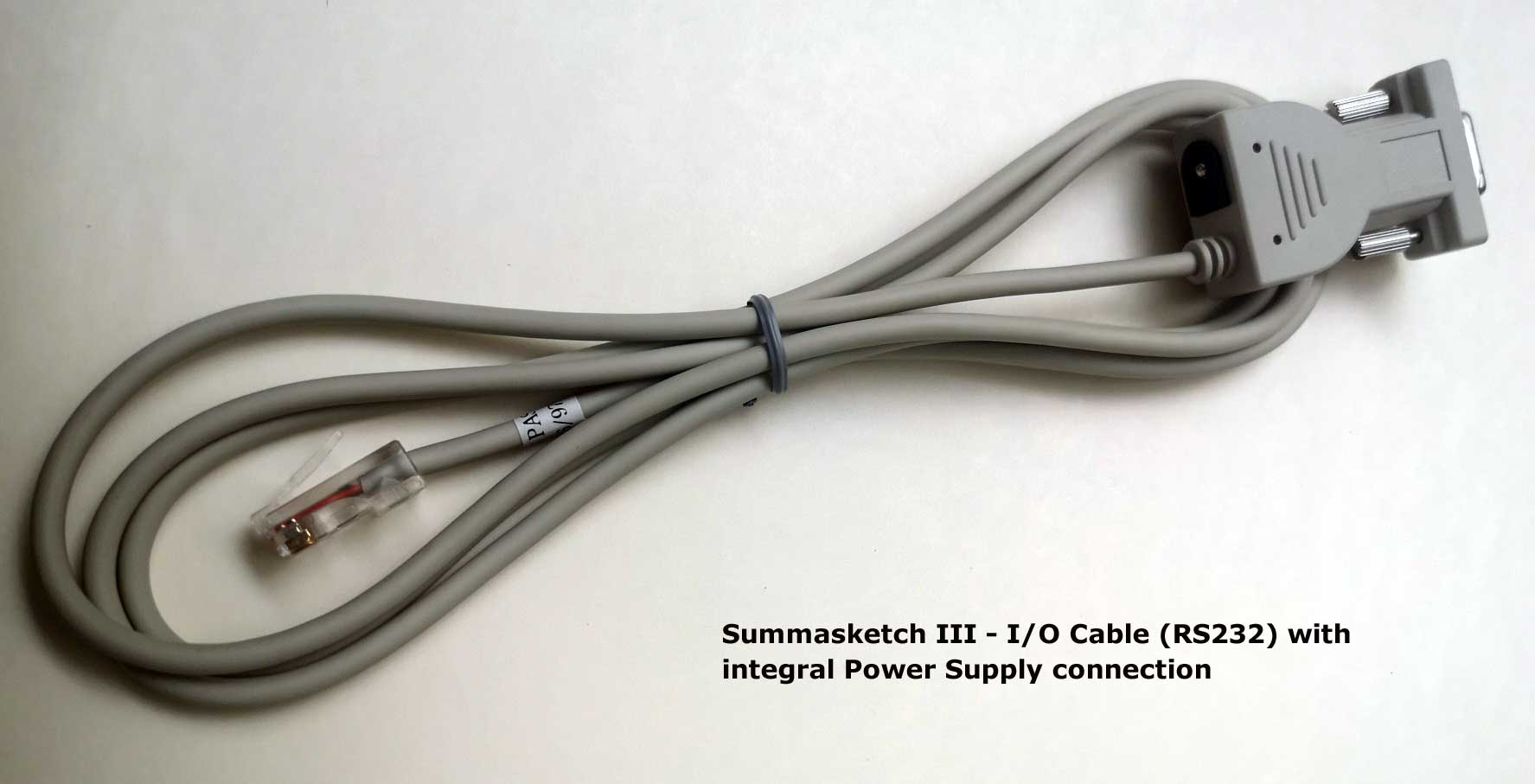

Interface cables

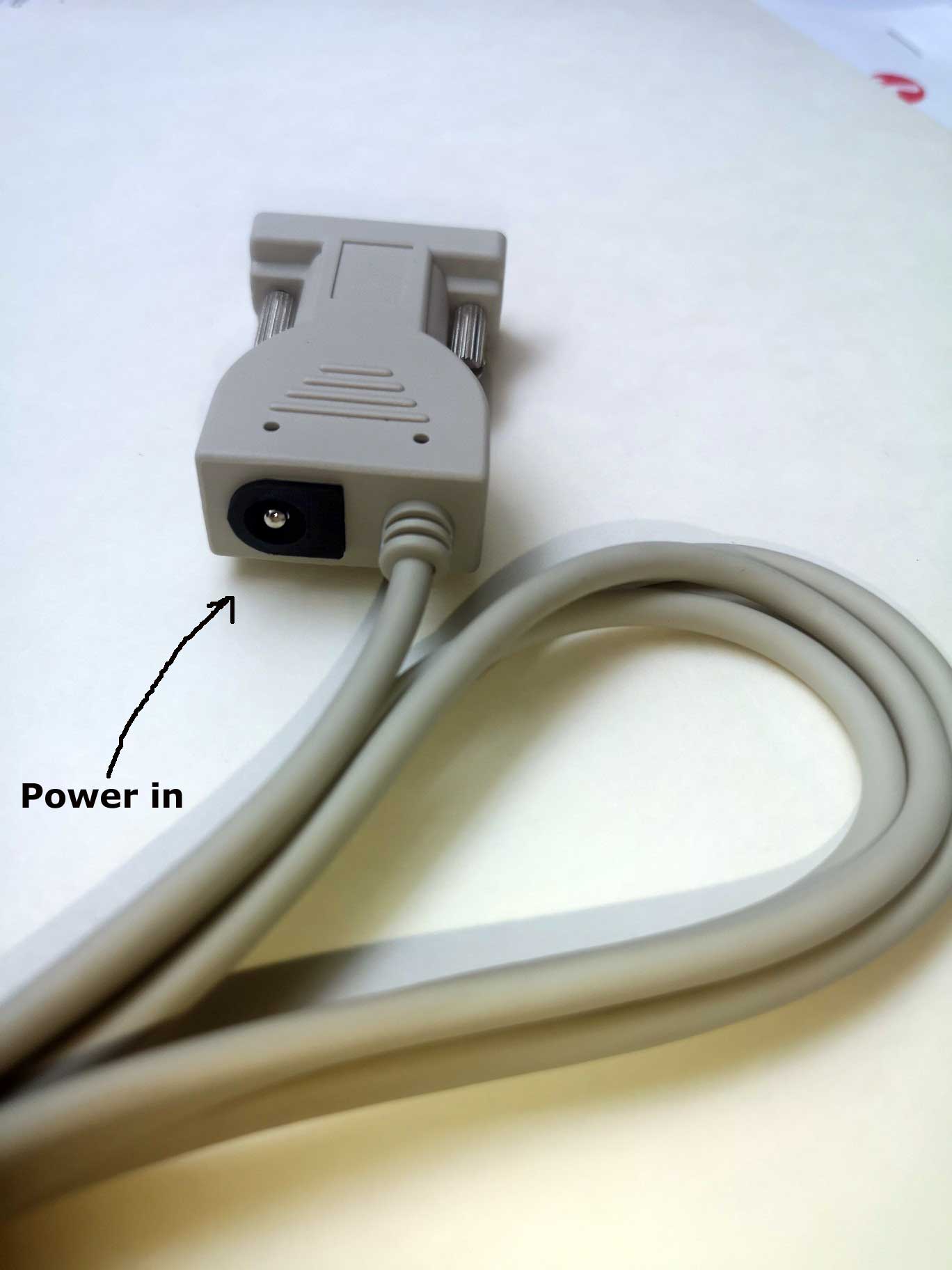

Power supply
AutoCAD Requires Vtablet Driver (Order from http://www.vtablet.com)

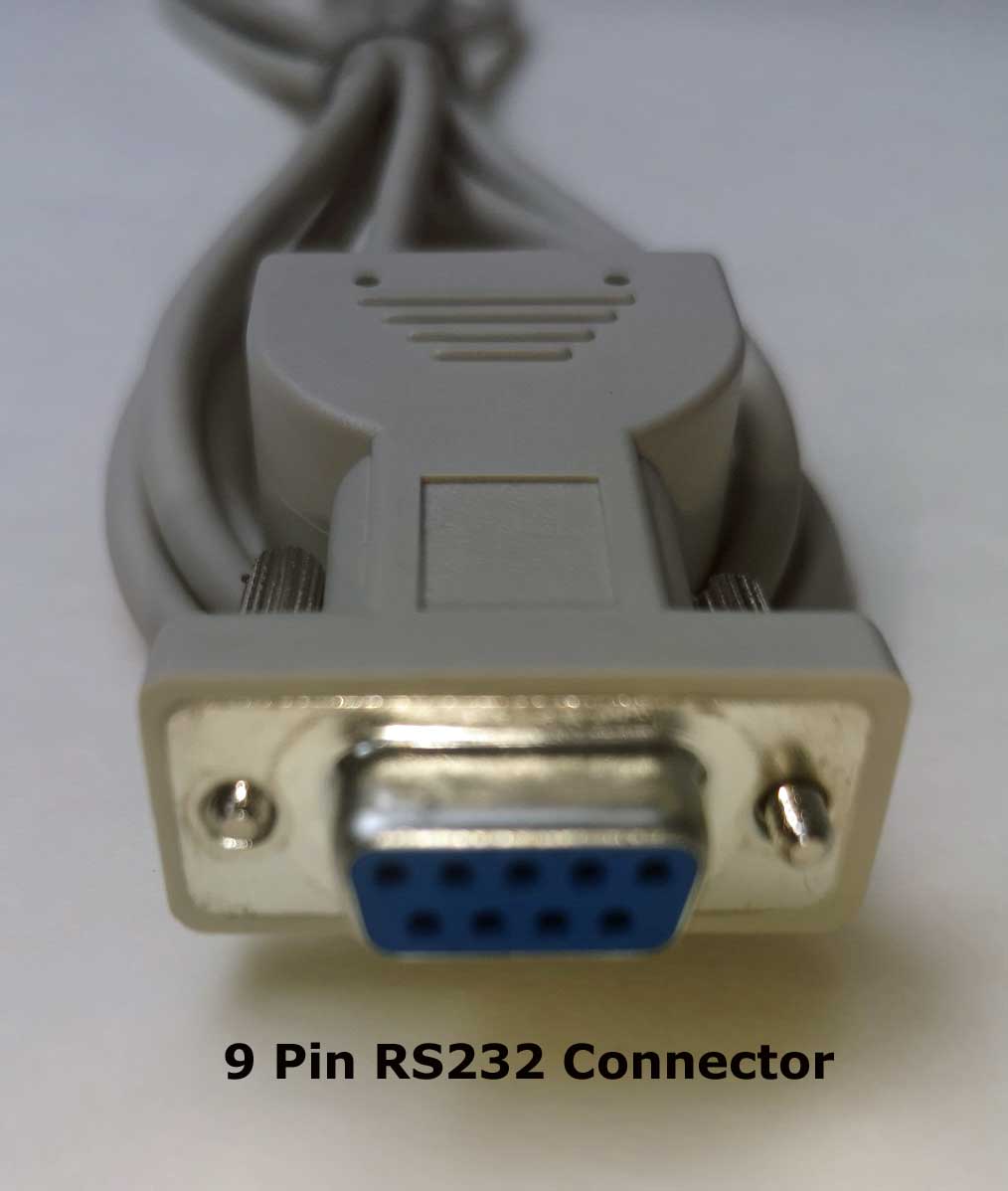

RS-232 interface Standard (USB Optional see this link for USB interface)
Operator's manual



Platform Support Compatible with over 400 software programs, including Windows 3.1, 95, NT, XP and Windows 7
For AutoCad use you will require the VTABLET driver available at http://www.vtablet.com



Software Drivers:
Windows 98, ME, NT, 2000, XP, Vista and Win7 Wintab/Tabletworks drivers.

Resolution:
12 x 12 in - 2,540 lpi/100 lpmm
Accuracy:
12 x 12 in - 0.010 in/0.254 mm
Data Rate:
Up to 114 reports per second
Technology:-  Electromagnetic
Formats:
MM (SummaSketch), Microgrid (UIOF)
Proximity:
0.5 in/12.7 mm
Pointing Tools:
4-button cursor, 16-button cursor

Shipping Weight:
12 x 12 in - 9 lb/4 kg



SummaSketch is a registered trademark of GTCO CalComp, Inc. All other product names are trademarks or registered trademarks of their respective owners.
