 Elinx ESW500 Series

b&b logo
 elinx esw500 series US Prices
CDN Prices

Privacy and Security Policy


Features and Benefits

  • Fully managed so you can manage network operation, configuration, and security via web interface
  • Redundant ring technology for ultra-fast recovery time
  • Alarm outputs help you detect and report network irregularities before serious problems happen
  • Dual power inputs help keep power on continuously and applications running non-stop
  • IP30 case, DIN or panel mount is ideal for industrial applications, hazardous environments
  • Gigabit options allow for higher throughput speeds for high bandwidth networks

B&B Electronics Elinx ESW500 series Industrial Managed Ethernet Switches provide powerful functionality in an IP30 DIN-rail or panel mount package. Designed for industrial application and engineered with managed features such as IGMP Snooping, Port Based VLAN, 802.1Q Tag VLAN, STP, RSTP, Web Based Management, Ingress Packet Filtering, and Egress Rate Control.

These managed switches also come with important industrial features to ensure reliable communications in an industrial application. RingOn is Rapid Rescue and Recovery System for Ethernet networks which is designed to provide a backup system (path) for communications. If a break occurs in the physical network communications can be restored in less than 15 ms.

Specifications

  • Light industrial design 61000-6-1 specifications
  • Shock, Vibration Tested
  • Temperature rating: -10 to 60°C (standard) or wide -40 to 75°C (-T models)
  • Built in fiber optic options (multi-mode, single-mode SC ports)
  • Gigabit options with copper and SFP combo ports
  • Rapid Spanning Tree Protocol recover system
  • IGMP with Query mode for multimedia application
  • Port based VLAN / 802.1 Q Tag VLAN
  • Relay alarm output for system events
  • Port mirroring for diagnostics
  • Power inputs
    • 12V - 36VDC (All Models)
    • 10V - 24 VAC (All ESW508 / ESW516 Series)
  • 100% burn in testing
  • 5 year warranty

Model Number  10/100  10/100/1000  SFP 1000  Multi-Mode Fiber  Single-Mode Fiber  Temperature    Price/Buy
ESW508
ESW508
        -10 to 60°C  Datasheet
Quick Start Guide
Manual



ESW508-2MC
 ESW5081
6     2 (SC)    -10 to 60°C  Datasheet
Quick Start Guide
Manual



ESW508-2SC
      2 (SC)   -10 to 60°C Datasheet
Quick Start Guide
Manual

ESW516
16          -10 to 60°C Datasheet
Quick Start Guide
Manual

ESW508-T
        -40 to 75°C  Datasheet
Quick Start Guide
Manual

ESW508-2MC-T
    2 (SC)    -40 to 75°C  Datasheet
Quick Start Guide
Manual

ESW508-2SC-T

6       2 (SC)  -40 to 75°C  Datasheet
Quick Start Guide
Manual

ESW516-T
16          -40 to 75°C  Datasheet
Quick Start Guide
Manual

ESW516-4MC-T 12      4 (SC)    -40 to 75°C
ESW516-4SC-T  12        4 (SC)  -40 to 75°C  Datasheet
Quick Start Guide
Manual

ESWG510-2SFP-T

(2)  (2)      -40 to 75°C
ESWG510-2MC-2SFP-T
(2)  (2)  2 (SC)    -40 to 75°C
ESWG510-2SC-2SFP-T
(2)  (2)    2 (SC)  -40 to 75°C


NEW!!! eworx SE300 Series

Model Number  10/100 10/100/1000  SFP 100/1000  Power Input Temperature Documentation/
Downloads
Price/Buy

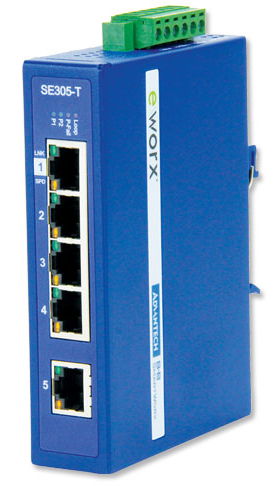

SE305-T
b B advantech
5     12 to 48 VDC -40 to 75°C Manual
Datasheet

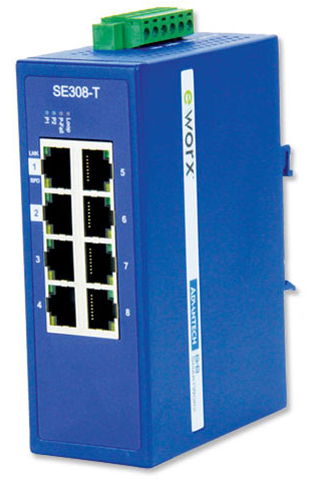

SE308-T
B B advantech
8     12 to 48 VDC -40 to 75°C Manual
Datasheet

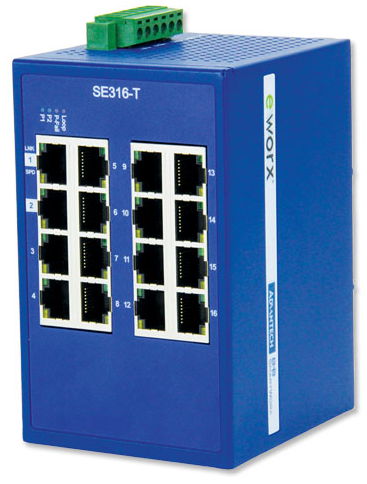

SE316-T
SE316-T
16     12 to 48 VDC -40 to 75°C Manual
Datasheet

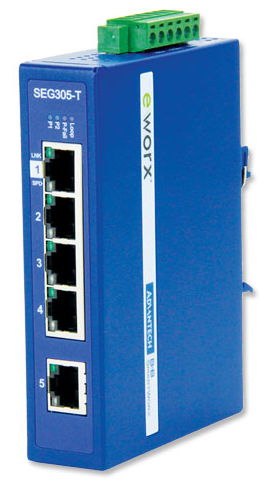

SEG305-T
  5   12 to 48 VDC -40 to 75°C Manual
Datasheet

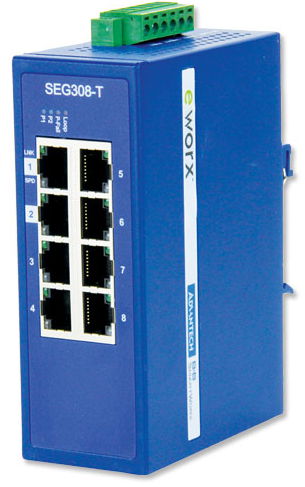

SEG308-T
  8   12 to 48 VDC -40 to 75°C Manual
Datasheet

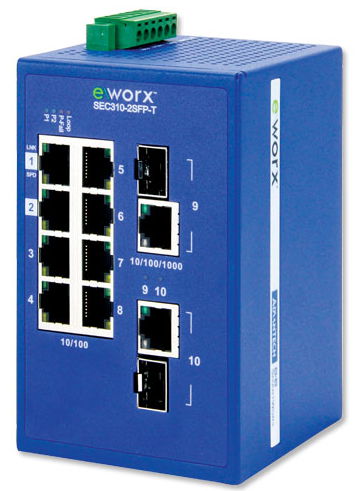

SEC310-2SFP-T
8 (2) (2) 12 to 48 VDC -40 to 75°C Manual
Datasheet

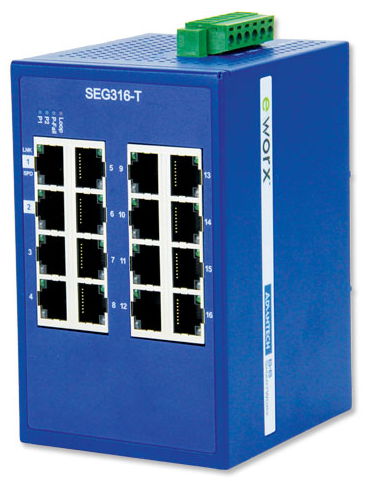

SEG316-T
  16   12 to 48 VDC -40 to 75°C Manual
Datasheet

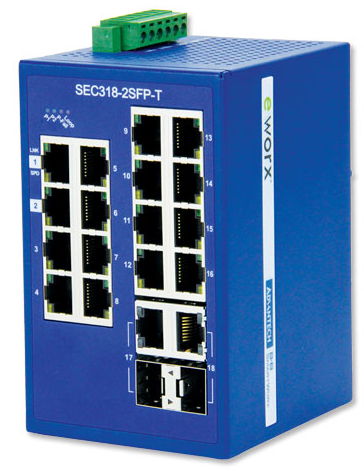

SEC318-2SFP-T
16 (2) (2) 12 to 48 VDC -40 to 75°C Manual
Datasheet


NEW!!! eworx SE500 Series

Model Number Description Documentation/
Downloads
Price/Buy
SEC510-2SFP-T
8-port 10/100Mbps 2 GbE Combo (SFP or RJ45) Full Managed Ethernet Switch Datasheet
Quick Start Guide
Manual

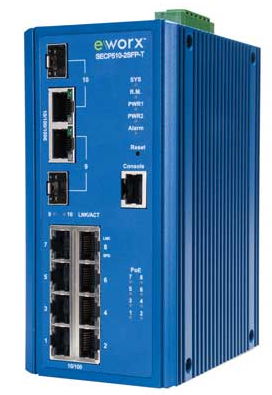

SECP510-2SFP-T
8-port 10/100Mbps with (PoE/PoE ) 2 GbE Combo (SFP or RJ45) Full Managed PoE Ethernet Switch Datasheet
Quick Start Guide
Manual
SEG510-2SFP-T
8-port GbE 2 GbE Combo (SFP or RJ45) Full Gigabit Managed Ethernet Switch Datasheet
Quick Start Guide
Manual
SEGP510-2SFP-T
8-port GbE with (PoE/PoE ) 2 GbE Combo (SFP or RJ45) Full Gigabit Managed PoE Ethernet Switch Datasheet
Quick Start Guide
Manual



You May Also Need…

Model No.  Description  Price/Buy
C5UMB3FBG
C5UMB3FBG
3 ft - Beige - Category 5e UTP Patch Cord Assemblies
C5UMB37BG
C5UMB3FBG1
3 ft - Beige - Category 5e UTP Patch Cord Assemblies
DR-120-24
DR-120-24
120W DIN-Rail 24 VDC Power Supply
DR19RMKT
DR19RMKT
Adjustable DIN Rail 19 Inch Rack Mount Kit
Quick Start Guide     Datasheet

SFP-1000LX-S-10KM-T
SFP-1000LX-S-10KM-T
SFP Module, 1000Base-LX, Single-mode 10km, LC Connector (-40 to 85°C)
Datasheet

SFP-1000LX-S-20KM-T
SFP-1000LX-S-20KM-T
SFP Module, 1000Base-LX, Single-mode 20km, LC Connector (-40 to 85°C)
Datasheet

SFP-1000LX-S-550M-T
SFP-1000LX-S-550KM-T
SFP Module, 1000Base-SX, Multi-mode 550m, LC Connector (-40 to 85°C)
Datasheet
