 Cuts and fills from electronic plans.
on screen cut & Fill image
(Click for larger image.)
 		   When calculating cuts and fills, SiteWorx/OS eliminates the need for paper plans. With SiteWorx/OS you can digitize directly from TIFF, PDF, DXF and many other raster and CAD format files. Existing and proposed contour lines, spot elevations and areas along with project boundaries, topsoil strip areas and topsoil respread areas. Once information is digitized into SiteWorx, click the mouse and automatically and accurately calculate cut and fill volumes. Calculate areas with subgrade volumes. SiteWorx/OS even tells you how to adjust proposed elevations to arrive at a balanced site.

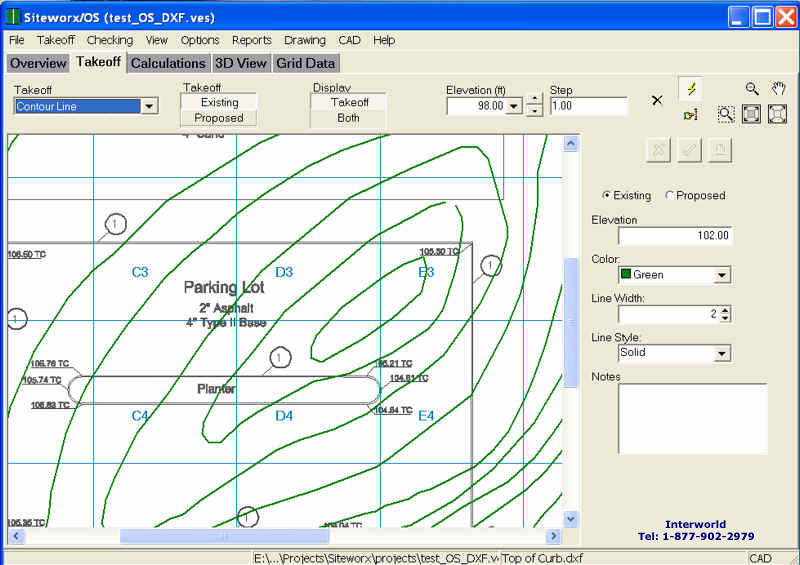

on screen contours for cut & fill takeoff
(Click for larger image.)
 		   SiteWorx/OS gives you the information you need the way you want it. View the information on-screen or print it.

Reports include:
  • 3D Graphics of the existing and proposed site
  • Cut and Fill Grid Report gives you the cut and fill volume for each grid along with the cut and fill depth at each corner of every grid
  • Takeoff Report shows you the plan view of the site with project boundaries, contour lines, points and areas
  • Area Reports identify measured areas along with subgrade volumes and materials
All information can be easily exported to Microsoft Excel and Word with the click of a mouse.
Features
  • Electronic plans
  • Automatic elevation checking reduces errors
  • Site balancing
  • Subgrade volumes by material type
  • Cut, fill, topsoil strip and topsoil respread volumes
  • Export results to Microsoft Word, Excel and other programs
  • Speed up the process - takeoff most drawings in less than an hour
  • Easy to Use - intuitive user interface
  • Easy to Learn - no computer knowledge required
  • Increase accuracy with error free mathematical calculations

The following SiteWorx/OS documents are available for download:
  Download a full working demo (15 Days)
