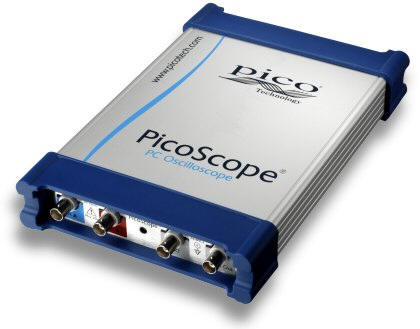

    Pico 5000 Series Scope Image









US Prices
CDN Prices

Privacy and Security Policy

Oscilloscope

VariantPicoScope 5203PicoScope 5204
Number of channels 2
Vertical resolution 8 bits
Bandwidth (at probe tip) 250 MHz
Maximum sampling rate (single shot)
One channel in use
Two channels in use

1 GS/s
500 MS/s
Maximum sampling (repetitive signals) 20 GS/s
Buffer size
One channel in use
Two channels in use

32 MS/channel
16 MS/channel

128 MS/channel
64 MS/channel
Inputs
Input characteristics
Coupling
Voltage ranges
Accuracy
Overload protection

BNC, 1 MΩ in parallel with 15 pF
Selectable AC/DC
±100 mV to ±20 V in 8 ranges
3%
±100 V
Timebase
Accuracy

50 ppm

Triggers

Trigger modes Normal, auto, repeat, single, ETS
Basic triggers rising / falling edge triggers
Advanced triggers Pulse width, dropout, window, delay, logic
External trigger
Trigger threshold
Resolution
Input characteristics
Bandwidth
Overload protection

Variable up to ±20 V
12 mV typical
BNC, 1 MΩ
150 MHz
±100 V

Arbitrary Waveform Generator

Arbitrary waveform buffer 10 to 8192 samples
Standard waveforms Sine, square, triangle, ramp (up/down), sin (x)/x, Gaussian, half sine, noise, DC
Special modes Triggering, gating
Sample rate 125 MS/s
Output characteristics BNC, 50 Ω
Resolution 12 bits
Amplitude ±250 mV to ±2 V (±2.5 V with DC offset)
DC offset ±1 V

Auxiliary Input/Output (AUX IO)

Input impedance 100 kΩ
Output impedance 600 Ω
Maximum input voltage 5 V
Input threshold 1.65 V (nominal)

PC Requirements

Minimum Processor: Pentium II processor, or equivalent
Memory: 64 MB minimum
Disk space: 300 MB minimum
Operating system: Microsoft Windows 98SE, ME, 2000 or XP
Ports: USB 1.1 compliant port
Recommended Processor: 2 GHz Pentium IV processer, or equivalent
Memory: 256 MB
Disk space: 1 GB
Operating system: Microsoft Windows XP
Ports: USB 2.0 compliant port

Environmental

Operating environment
Temperature range

Humidity

0 °C to 40 °C for normal operation
20 °C to 30 °C for quoted accuracy
5% to 80% RH, non-condensing
Storage environment
Temperature range

Humidity

-20 °C to 60 °C
5% to 95% RH, non-condensing

Physical Dimensions

Dimensions 170 x 255 x 40 mm
(6.7 x 10.0 x 1.6 in)
Weight 0.9 kg
(31.7 oz)
Compliance European EMC and LVD standards
FCC Rules Part 15 Class A

General

Supplied software/hardware PicoScope 6 software, drivers, SDK
Tough carry case
2 x 250 MHz x1/x10 oscilloscope probes
USB 2.0 cable
AC adaptor
Power supply
AC adaptor
6 V ±5% @ 2.5 A
External adaptor supplied (suitable for USA, UK, Europe and Australasia)
