CAN Test Box
Continuing with our mission to make vehicle diagnostics easier and faster…the new CAN Test Box gives you easy access to the 16 pins of the diagnostic connector that is fitted to all modern vehicles. Depending on the configuration of the vehicle, this may allow you to check power, ground and CAN Bus signal quality. With the test leads supplied you can connect your PicoScope lab scope to the CAN Test Box to monitor signals such as the CAN High and Low. More.....
New tutorial Posted
1 New Tutorial Posted
Fuse Box Diagnostics
We have just posted a new Automotive Tutorial in our education section.
This tutorial shows and explains how to use the fuse box to do your diagnostics. An Audi A8 is used here.........
You can view all our automotive tutorials here.........
"Never before has such a powerful package been available in this price range and we expect the kit to turn the market for automotive diagnostics on its head." - Alan Tong, Pico's Technical Director.
The Pico Automotive Diagnostic Kit can be used to measure and test virtually all of the electrical and electronic components and circuits in the modern vehicle including:
Ignition (primary & secondary)
Injectors & fuel pumps
Starter & charging circuits
ABS sensors. Crank & cam sensors
Lambda, Airflow, knock & MAP sensors
Glow plugs / timer relays
Relative compression tests
The kit is ideal for a wide range of users including, OEMs, franchised and non franchised garages, breakdown / roadside recovery organisations and mobile tuning/repair services. This powerful and flexible kit has been designed for ease of use so is equally suitable for both novice and expert users.
The Diagnostics Kit is based around the successful ADC-212/3 PC-based oscilloscope and includes a powerful software and information package. The kit turns your laptop or desktop PC into a powerful automotive diagnostic tool for fault finding the increasing number of sensors, actuators and electronic circuits found on todays vehicles.
ADC-212/3 PC-based oscilloscope
The ADC-212/3 is an easy to use two channel PC based oscilloscope. With all of the accessories the ADC-212/3 can be used to measure all of the voltage and current waveforms from the numerous actuators, sensors and electronic circuits found on any car, lorry or motorbike.
The MI077 is a 600A current clamp, ideal for use with the ADC-212 for displaying starter current waveforms, charging currents and for performing relative compression tests.
The TA009 is a 10mA to 60A current clamp, ideal for use with the ADC-212 for measuring the current drawn by smaller devices, such as fuel injectors & fuel pumps.
First and foremost the TA008 is a back pinning probe. In fact, its the smallest diameter back pinning probe that we know of. This is essential for probing today's small, fragile connector. It is also very sharp, so it slides past connector seals with ease. This product solves most of the
problems associated with traditional back-pinning methods.
Secondly, the TA008 is a piercing probe. It's small diameter, extra sharp pin makes it ideal for piercing the insulation on small gauge wires where traditional piercing tools might cause damage.
Piercing Clips
The TA007 Insulation Piercing Test Clip set is ideally suited for automotive test and diagnosis. The piercing clips allow the user to provide the exact pressure needed to pierce the insulation of a wide range of wire types and sizes. The clips also feature a rotating banana jack that prevents the test lead from twisting and keeps the oscilloscope in the circuit while the wire is pierced, providing immediate confirmation that contact with the conductor has been made
A wide range of clips, gators and probes are included which plug into the TA000 test lead. Follow the link below for full details and example applications.
The TA000 test lead has been custom made for automotive use with the ADC-212. Its long length (3 meters / approx 10 ft)allows the oscilloscope to be placed on the work bench away from the car being tested / repaired. A wide range of probes, clips and gators can be plugged into the 4mm connectors at the end of the cable.(see below).
The cable is fully screened to reduce noise pickup. To prevent cables getting tangled, the two wires leading to the 4mm connectors are of different lengths, the short negative lead is intended for easy connection to a convient ground point (eg the battery), the much longer positive lead allows easy access around the engine bay.
MI074 Secondary Ignition Pickup
The MI074 is a capacitive secondary ignition pickup which simply connects around the insulation of an ignition circuit component such as a plug wire, this avoids the need for direct connection to these high voltage signals.
The MI074 comes with a shielded 2.5m (100 inch) lead. It is suitable for use with conventional ignition systems and most HEI and DIS systems. Our library of Automotive Waveforms contains example waveforms captured using a ADC-212 and the MI074
TA012 2-pin Automotive Break out lead
The TA012 break out lead allows for easy connection to many of the sensors and actuators around the engine bay. The break out lead is simply connected into the existing cable loom, the output signal can then be taken from the two 4mm banana plugs into the ADC-212 using the TA000.
As well as measuring voltage signals, the unique design also allows current to be measured with a current clamp. This makes it possible to simultaneously view both the current waveform and voltage waveform of components such as fuel injectors.
MI075 Cigar lighter power lead
In the workshop the ADC-212 is normally powered using the supplied mains adaptor. If however you want to use the ADC-212 on the move with a laptop, this handy lead allows you to power the ADC-212 from the cars cigar lighter socket
The curled lead, when extended is over 3 meters in length so also allows the ADC-212 to be used under the bonnet whilst taking power from the vehicle under test.

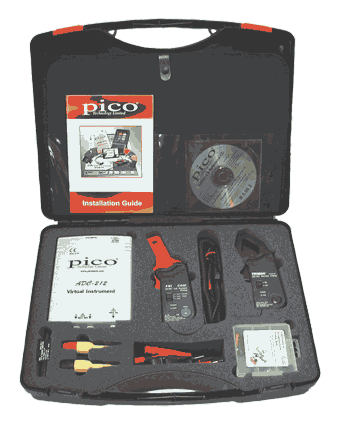

The Basic Automotive kit (PP205) contains the following products: (Replaced by the PP280 Based on the 3223 Scope)
