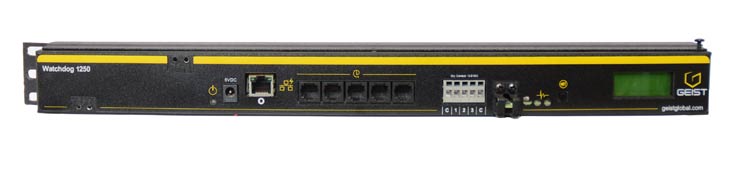

The Watchdog 1250 environmental monitor provides Web-based remote surveillance of temperature, relative humidity, dew point, airflow, light, sound and additional sensors connected to the unit. It comes equipped with an LCD display with scrolling measurements and a built-in audible alarm. It is especially useful for monitoring environmental conditions in critical applications such as data centers, server rooms, network closets or other critical facilities.
Easily view and log temperature, relative humidity, dew point, airflow, light, sound and more over the intranet or the Web. No software required - securely access the graphical user interface from a web browser. Power adapter included. Supports both digital and analog sensors. Watchdog 1250 supports the IOE and Remote Power Manager X2.
SNMP, Email & SMS Alerts
The Watchdog 1250 can trigger multiple/escalating alarms if temperature or humidity fall outside of specified parameters via SNMP (v1, v2c, v3), email and SMS messages (e-mail to SMS gateway). For example, specify an email notification to one or more users at 70° F, add another layer of personnel to an additional email alarm at 80° F, add your third party contractor at 85° F...specify up to 200 alarms per unit.
View Charts and Graphs on the Web
The Watchdog 1250 serves active Web pages displaying real time readings and graphs of temperature, humidity and dew point in addition to data logs in standard format (downloadable as XML or CSV file). Graphing scales are fully adjustable.
Interface Network IP Cameras
The Web page interfaces up to four IP cameras (not included), allowing you a quick view of remote conditions, especially useful in event of alarm.
No Software Required
The Watchdog 1250 is simple to install and use, requiring no special software other than a standard Web Browser. It connects to an Ethernet Network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser and can be password protected with 3 access account level types: Administrator, Control, View Only. From within an Intranet or over the Internet, the user can securely access the monitor by entering its IP address.
Specifications
On-board Sensors:
Temperature: -22 to 185 °F (-30 to 85 °C), /- 0.5 °C
Humidity: 0 to 100%, /- 5%
Air Flow: 0 to 99 (relative value)
Light: Ambient light level
Sound: Average sound level

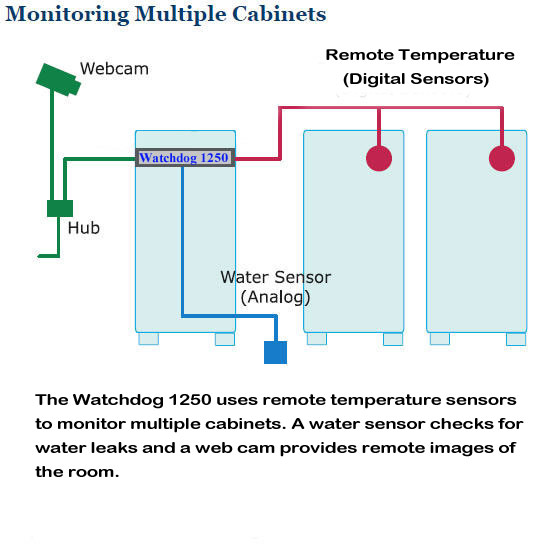

Remote Sensor Support
Digital Sensor: 5 ports (expandable to 16 with splitters)
Analog Sensor: 3 inputs (contact closure, 0-5 VDC)
Physical: 19" Rack-mount, 1-U space
Power: 6VDC (supplied wall transformer)
Ethernet: 10 Mbps, RJ-45 receptacle
Real Time Clock (RTC) with power backup
Reset push-button: restores factory defaults
LCD Display with scrolling text
Built-in Audible Alarm
Warranty: 1 Year (extended warranties available)
Software Features
HTTP / HTTPS: web access
Alarms: high/low values, multiple thresholds per sensor
ESMTP / POP3: email alerts, ESMTP / POP3 auth
SNMP (v1, v2c, v3): Gets, Trap and Clear alerts, MIB
Paging: email to pager proxy
XML: meta-tagged sensor values, alarms, config
Syslog: send debug messages to Syslog server
Web interface: 4 styles to choose from
Access-control: 3 access levels (view, control, admin)
Web Cams (optional): Up to four can be displayed
Compatible with WatchDog Racknet Node Manager
|
