USBee Protolyzer Prototype Analyzing System

Electronic Prototyping with Built-In Oscilloscopes, Logic Analyzers, Signal Generators, Protocol Analyzers and More!

US Prices
CDN Prices

Privacy and Security Policy



protolyzer

protolyzer config

The USBee Protolyzer combines state-of-the-art electronic prototyping development components with a complete range of digital and analog test equipment in a single PC-based and USB connected device.

protolyzer suite

With a single USB connection to your laptop or PC, the USBee Protolyzer gives you the power to design, prototype, test, and validate your mixed signal electronic designs with seamless ease.

Built around the popular, award-winning USBee AX and DX mixed signal Oscilloscope, Logic Analyzer, Signal Generator, and Protocol Analyzers, the USBee Protolyzer takes full advantage of the powerful debug capabilities of the USBee Suite software to solve your problems fast!

The USBee Protolyzer comes in two versions: the USBee AX Protolyzer and the USBee DX Protolyzer.



USBee AX Protolyzer

Available June 2010

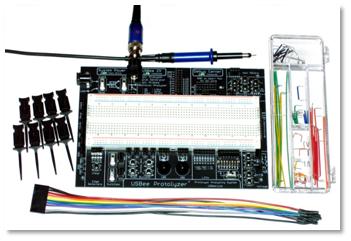

ax protolyzer

Test Equipment Features

  • Embedded USBee AX-Pro 1Ax8D Logic Analyzer/ Oscilloscope/ Signal Generator with standard oscilloscope probe (24Msps, 200 M samples)
  • 8 Logic Probe indicators for current signal state and activity (2V to 5V logic levels)
  • 4 channel voltmeter (0-5V)
  • 4 channel edge detector (2V to 5V logic levels)
  • USBee Suite control buttons (Capture, Pan and zoom) plus customizable macro key
  • Full integration with the USBee Suite Logic Analyzer/ Oscilloscope/ Protocol Analyzer PC software.

Prototyping Features

  • Dynamically Configurable Debug Center with Op Amps, Logic gates, Tri color LEDs, Buffers, Filters, ADCs, DACs, Counters, etc.
  • Solderless Breadboard
  • USB or external power supply with regulated 5V, 3.3V and variable reference voltage
  • SPDT switches
  • Push buttons
  • LED's
  • Sine/Triangle/Square wave generator (0-3.3V, 0Hz to 6MHz)
  • UART to PC interface (Virtual COM port)
  • Variable resistors (10K and 20K)
  • DIP switches



USBee DX Protolyzer

Available June 2010

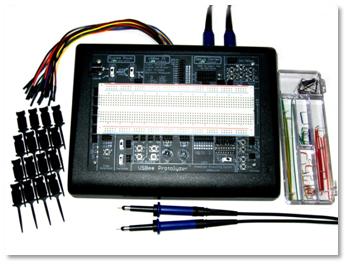

dx protolyzer

Includes all USBee AX Protolyzer features PLUS:

  • USBee DX 2 Analog x 16 Digital Logic Analyzer/ Oscilloscope/ Signal Generator/ Protocol Analyzer (24Msps, 200 M samples)
  • Simultaneous Signal Generation and Oscilloscope/Logic Analyzer operation
  • Slanted case
  • Two Standard 40MHz 1x/10x selectable oscilloscope probes
  • Digital Test Leads with 0.025” square sockets
  • Mini-gripper test clips for SMT or DIP components
  • Interconnection wire set
  • Carrying / Storage Case

PC System Requirements

The USBee Protolyzers require the following minimum PC features:

  • Windows® 7, Vista, or XP operating system (32 or 64-bit)
  • Pentium or higher processor
  • One USB2.0 High Speed enabled port.  It will not run on USB 1.1 Full Speed ports.
  • 32MBytes of RAM
  • 125MBytes of Hard disk space
  • Internet Access (for software updates and technical support)
